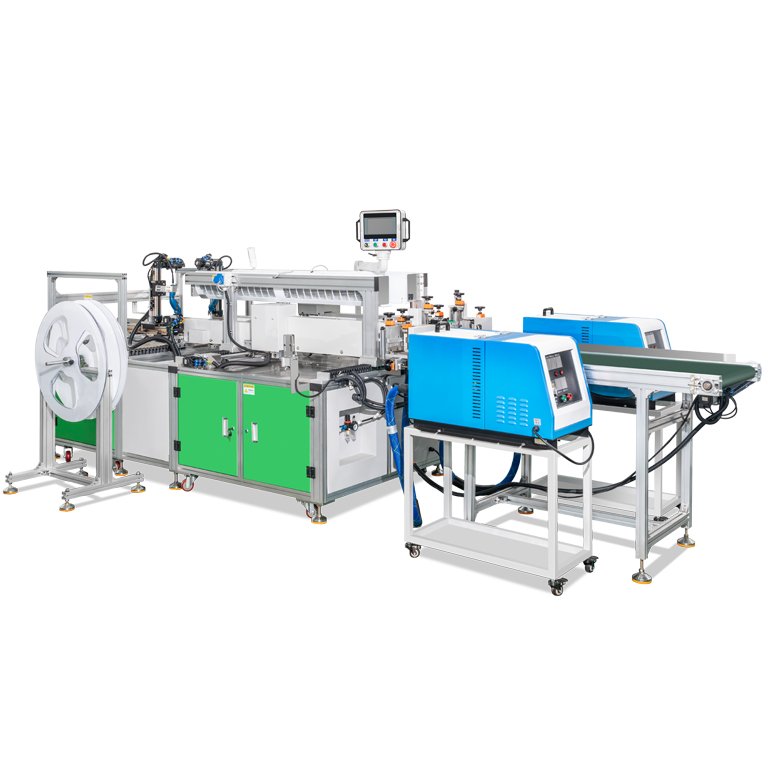

HEPA Filter Edge Banding Machine

Model: HC-LW-09, Equipment name: large filter continuous automaticedging machine.

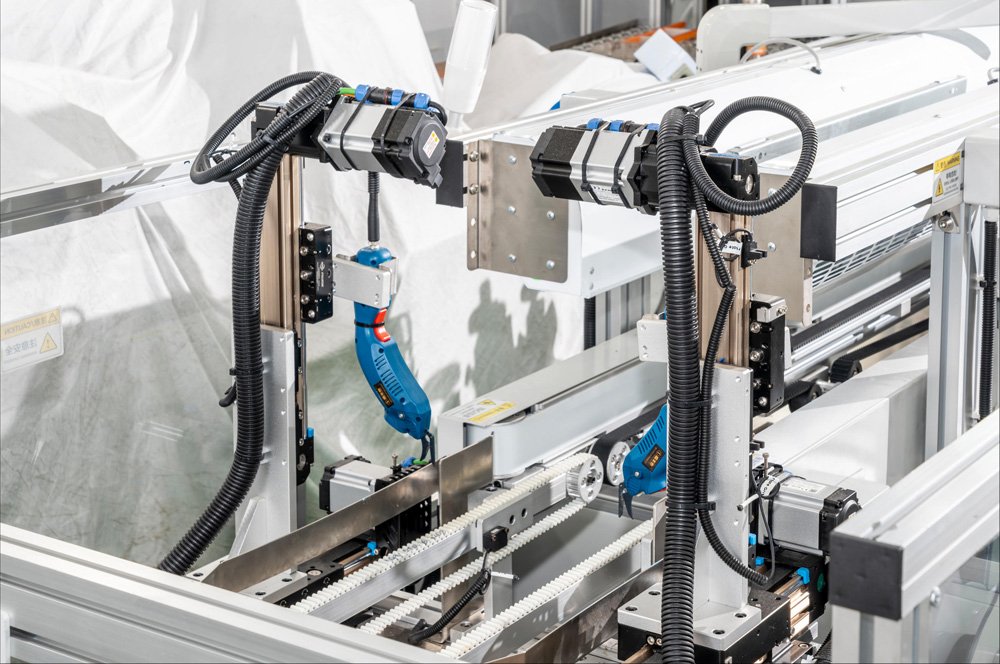

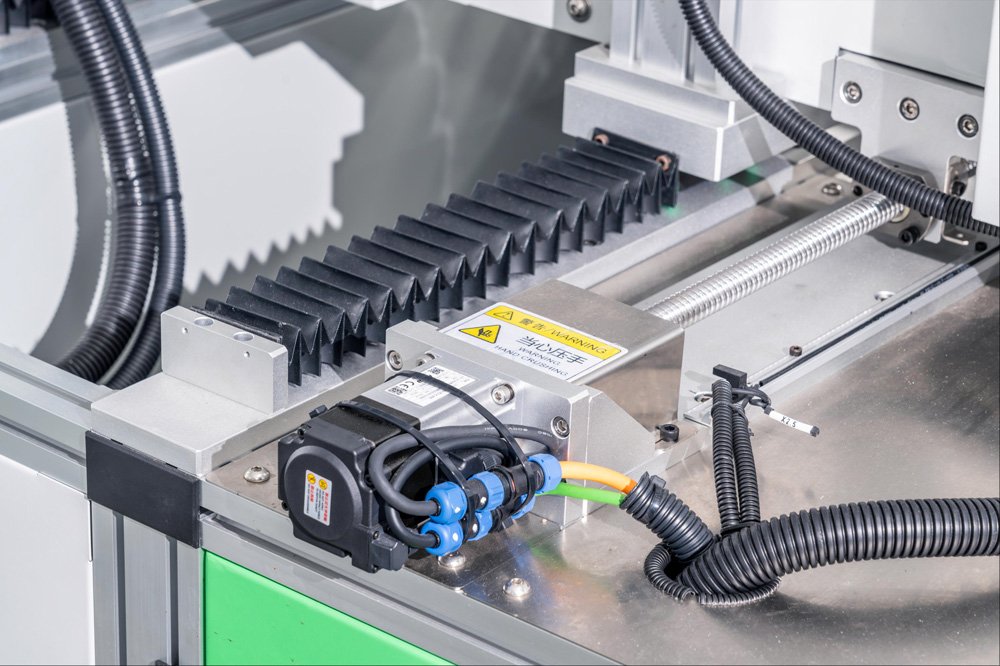

Equipment functions: continuous automatic sealing strip, hot melt adhesiveautomatic air drying curing, selfDynamic shear seal, automatic feeding, manual feeding. Drive mode: servomotor,
Stepper motor, cylinder.Voltage:220V air pressure: 0.6-0.8MPA.The equipment can produce product specifications :max:600X450X70mm;min:150X150X10mm;
Equipme

nt size:6000X2200X1600mm(length, width and height), theequipment can only adapt

Hard/soft sealing strip (Pp strip),thickness 1mm~3mm.The equipment is stable, efficient, safe, power saving and durable.Touch screen full parameter control sy

stem, according to differentspecifications of the product, simple SettingsThat’s it.
Simple and convenient operation: touch screen display operation, fullintelligent Chinese man-

machine interface,Each parameter record,display, alarm.

Filter size scope	Max: 600 45080mm; Min: 15015010mm
Opetating tempo	4～6M/min
Voltage	220V
Power	12KW
Air pressure	0.6-0.8Mpa
Overall dimension	600018001300mm (LWH) including the front and rear two assembly lines

Human-machine Efficiency Comparison

Disadvantages of manual production	Advantages of automated production
This workstation includes two processes: pasting PP strips and cutting off the remaining materials, which require the cooperation of two people. It is easy to burn the hands, so workers are reluctant to operate it. It is easy to waste PP strip materials. It requires high skills from workers and has a high defect rate. It is labor-intensive and highly dependent on people. Two people produce one piece in 30 seconds.	The automated equipment only needs one person to put in and change materials, and can easily produce; it does not rely on the workers' skills, and can be put into work after a little training; there is no waste of materials, and there are very few defective products; it can produce 24 hours a day; 8 seconds to 15 seconds to produce one piece
Calculated at the fastest speed: 2 people operate, 2 pieces are produced in 1 minute, 120 pieces are produced in 1 hour, 1440 pieces are produced in 12 hours a day, and 43,200 pieces are produced in 1 month; on average one person produces 21,600 pieces, and 5 people produce 108,000 pieces per month.	Calculated at normal speed: 1 person operates, 5 pieces are produced in 1 minute, 300 pieces are produced in 1 hour, 36,000 pieces are produced in 12 hours a day , and 108,000 pieces are produced in 1 month.
All uncontrollable factors are ignored here, including but not limited to drinking water/going to the bathroom/slacking off/playing with mobile phones/taking leave, etc.
Conclusion: With automation, only one person can easily achieve the output of five people, increasing production capacity by at least five times and reducing losses by more than 50%.
