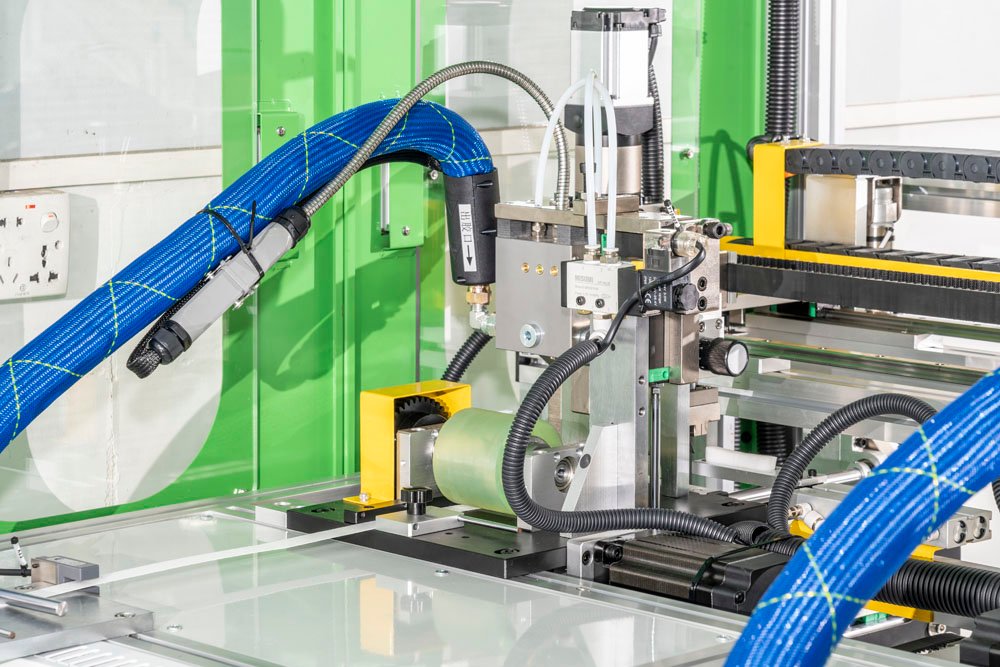

Cabin Air Filter Edge Banding Machine

Features:

This machine is mainly used for the edge bandingand trimming process of square filters such ascabin air filters lt only takes one person to operate.When the input speed is fast enough, themaximum speed of the machine can produce afilter in 10 seconds. Workers only need to put thepleat pack into the fixture, and the edge bandingcooling and trimming are automatically done bythe machine.This machine adopts the newlydesigned fixtures quick switchover system, andonly two fixtures are needed to achieve high-speed edge banding. We have also adopted a newstructure in the cooling system to achieve thecooling of multiple filters with minimal space toensure that the hot melt adhesive has beencompletely cured before edge trimming. In thetrimming process, we use servo motor control toachieve fully automatic edgebanding andtrimming

Sample Display

Related Projects:

Automated Two-sides Edge Banding Machine: Applied to the edge banding and trimming process

Advantages and features:

The system stroke meets the finished product size range: Max: 400X300X60mm; Min: 100X110X10mm;

The system is easy to operate, with touch screen display and operation, full Chinese or English interface, and various parameters can be recorded, displayed and alarmed;

The program can be adjusted quickly. The mechanical pressing and pasting process can store parameters of different models and specifications at the same time. It can quickly adapt to different products with simple selection operations. It can also ensure that when changing the mold, there is no need to re-correct the motion trajectory.

The system has automatic induction transmission operation and can load materials quickly. The operator is only responsible for placing semi-finished filter screens (more than 1 piece/time) and installing coils;

The system operation cycle is within 8 s to 15 s per piece (including the normal time for operators to place materials), and the model change can be completed within 15-20 minutes per person under normal conditions;

Non-woven fabrics and other sealing white strips are supplied in roll form, and the reel diameter is about 600mm (40m material);

We provide corresponding fixtures for each product and free training for workers.
